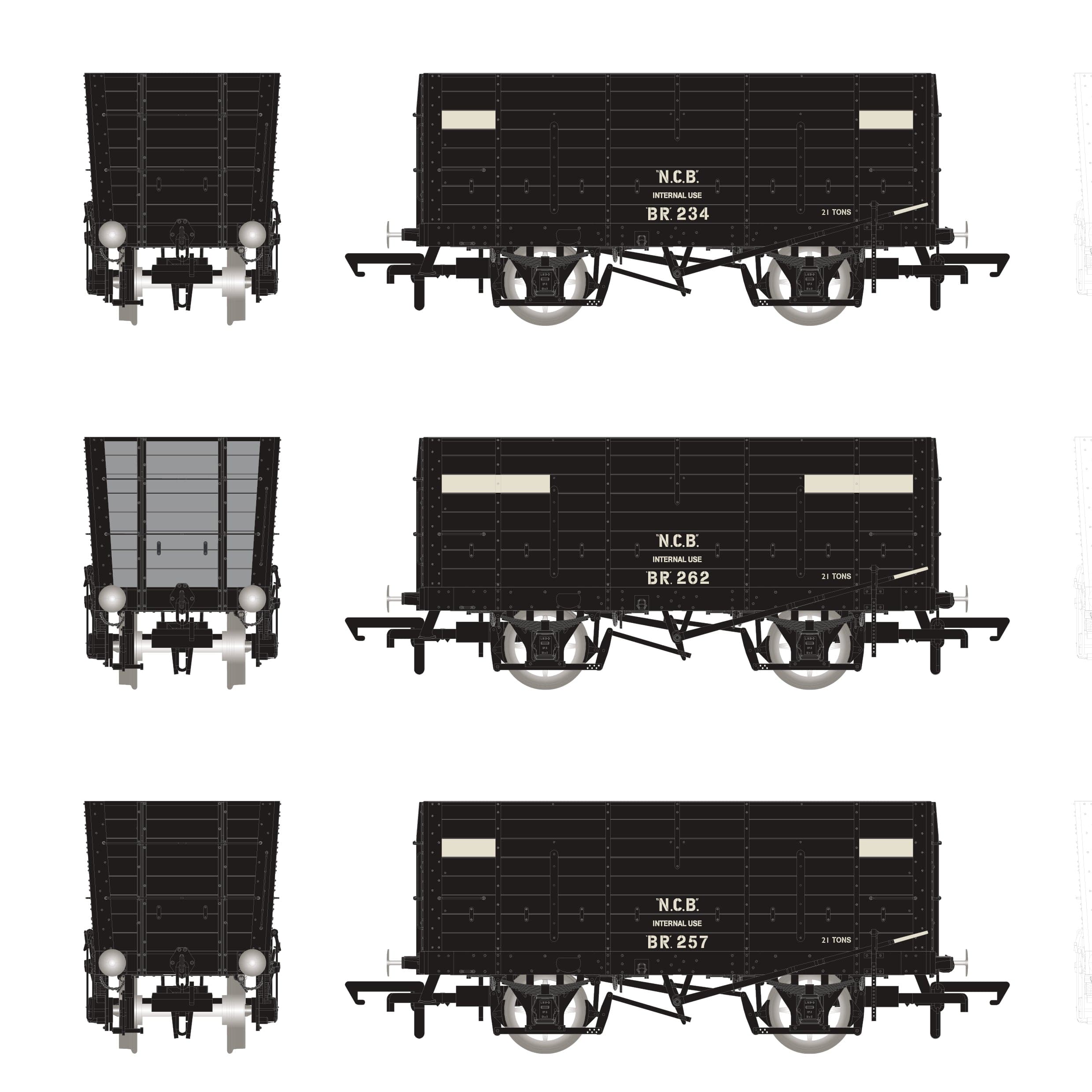

P7 Hopper - NCB (Brodsworth) Black, with white planks - Triple Pack
Available in stock
Detailed Description
Detailed Description
P7 Hopper - NCB (Brodsworth) Black, with white planks - Triple Pack
- Two types of end stanchion tooled: NER wooden or LNER metal ‘T’ bar type from 1925 onwards. After 1926, the bottom sections of any remaining wooden stanchions were removed.
- Side chains were fitted to NER Northern Division examples until 1916 and have been catered for.
- Two type types of axle-box tooled: S4 double axleguard (10" x 5") covering 1909 to 1912 and No.3 (10" x 5") covering 1912 to 1930.
- Double axle-guards, as fitted to new wagons between 1904 until circa 1916, have been tooled for.
- Differing brake arrangements tooled: Morton single shoe per wheel pattern brakes and Morton Cam pattern (diagonally opposed), as well as 4-shoe clasp on one side of wagon.
- Handbrakes can be end, or side fitted, with two types of side handbrake arrangement catered for.
- Body ends will feature the removed central section of bottom plank for Northern and Central Division incline hauled hoppers, as well as the Southern Division solid end.
- Different corner step arrangements: Left hand opposed corner steps fitted from the end of 1903 onwards, but if Morton Duplex brakes were fitted, steps were put at opposite end. If end handbrake fitted, steps fitted to all corners.
- Die-cast metal chassis with plastic body.
- Scale length of 80mm over headstocks for all four types, 30.67 wide for P6 and 32mm for P7, P8 and Q3.
- Wheelbase of 42mm, allowing operation over a minimum radius of 371mm (1st radius set-track).
- Tooling covers three different body designs, with regional and era variations for each.
- Brake blocks fitted and aligned with wheels.
- RP25.110 chemically blackened OO gauge split spoke wheels, set into blackened brass bearings and conforming to accurascale standards of 14.4mm back-to-back on 2mm axles over 26mm pinpoints.
- Eroded metal, plastic and wire detail parts, including (but not limited to) handrails, grab handles, side-door handles, lamp brackets, brake gear, draw gear and anti-friction gear.
- Representation of internal body detail
- Turned metal sprung buffers.
- Small tension locks fitted, set into small, self-centring NEM housings.
- Authentic livery, markings and numbers, accurate to time period modelled.
Specification
Specification
Lighting and DCC
Lighting and DCC
Common Features
Common Features
I am delighted with my 3 sets of NCB Brodsworth hoppers. The packaging is first class, but you need to take great care unboxing them, due to the delicate nature of the highly detailed wagons. The quality and detail of the wagons is superb. A nice surprise was the pack of 3 link couplings provided with each set. I am now saving up for some more wagons. 👍👍😁
Expanding my fleet of NCB wagons. Love these P7 hoppers. Shame there is no coal load available, had to fudge it.
Accurascale really have the neck to impress modellers with their rolling stock. This time around with this P7 Era 7 NCB Black with White Planks - Brodsworth triple wagon pack. The painted body is clean, and the printing of the text is sharp. The detailing of the wagons themselves is exquisite as one would expect from Accurascale. We have fine handrails, break gear, axle boxes, corner steps, sprung buffers, and internal structural content, and under bottom mouldings. The planking and rivet detailing are moulded at a perfect depth. Exceptional Quality Wagons Accurascale.
Great model. Livery and fine detail well executed.
Superbly detailed. Don’t miss the one grey end! Run smoothly over points. Do I fit coal loads and lose sight of the internal detail?
